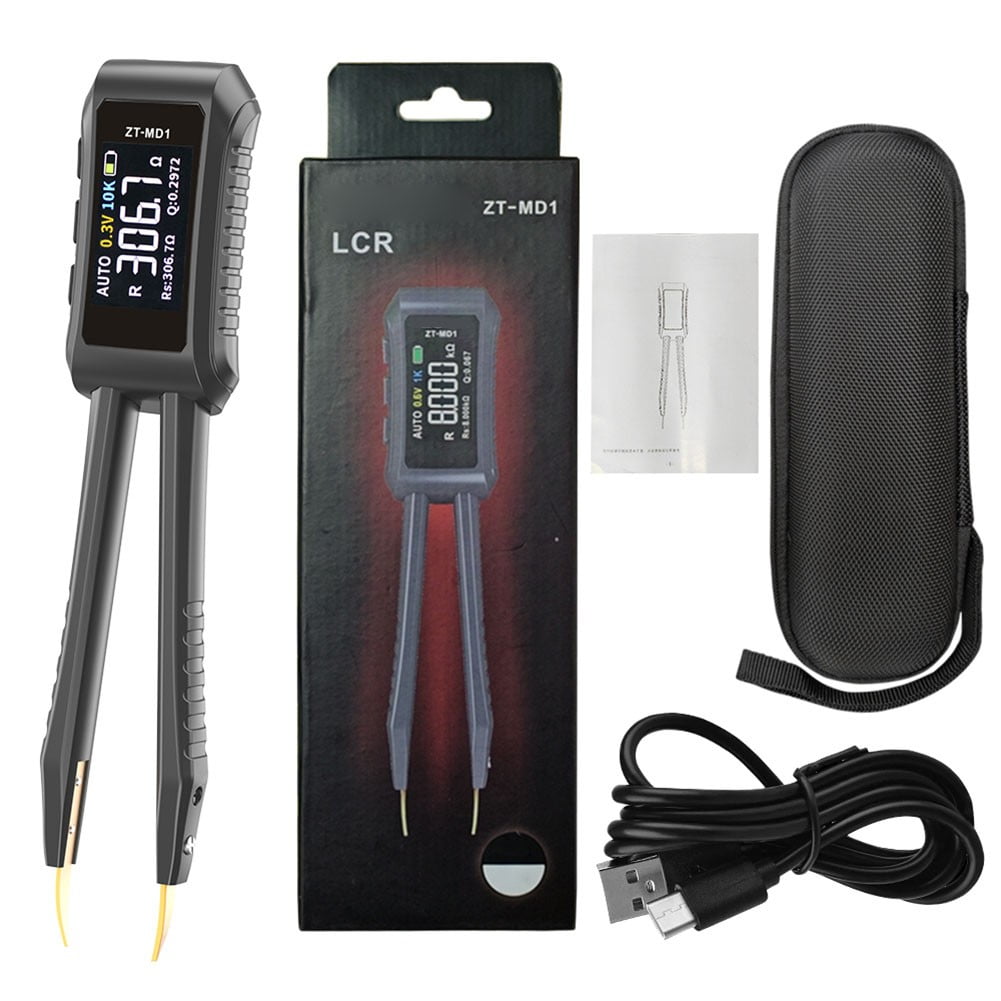

yaaqii ZT-MD1 Digital Multimeter Intelligent Tester LCR for SMD Resistors and Inductors

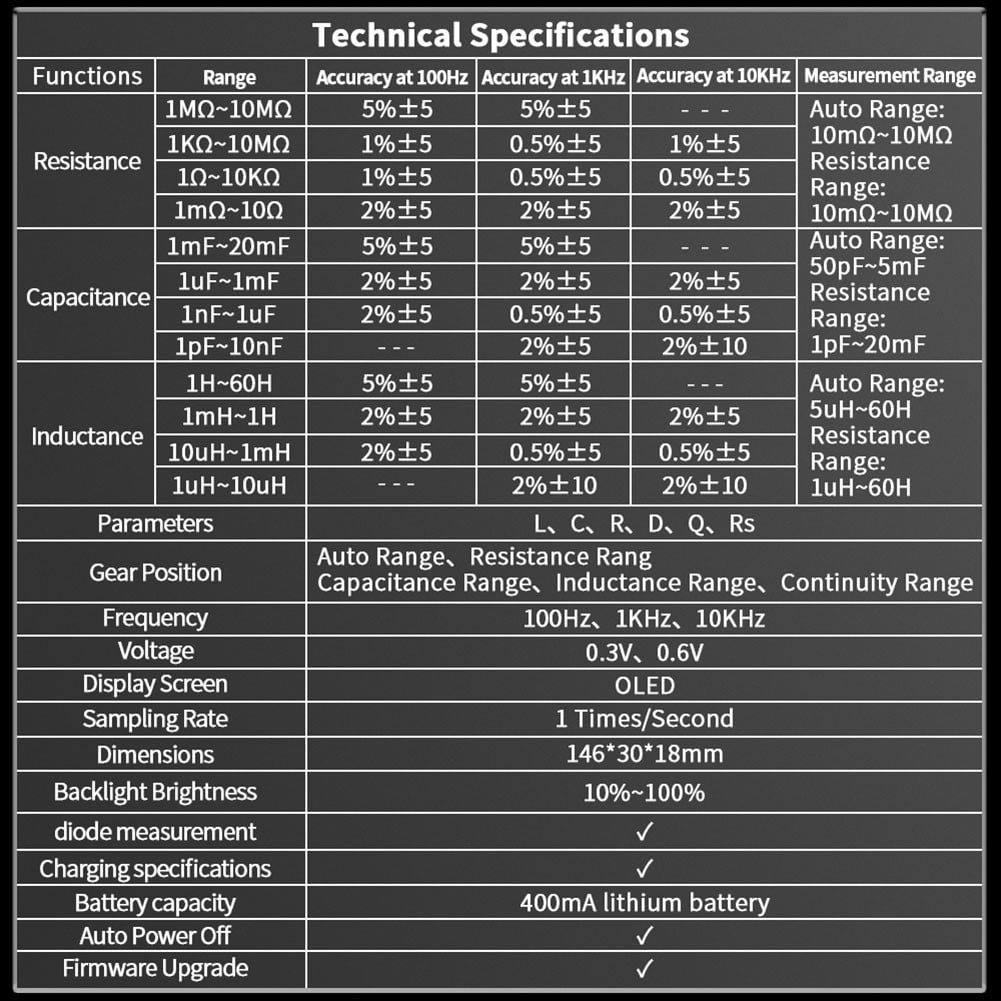

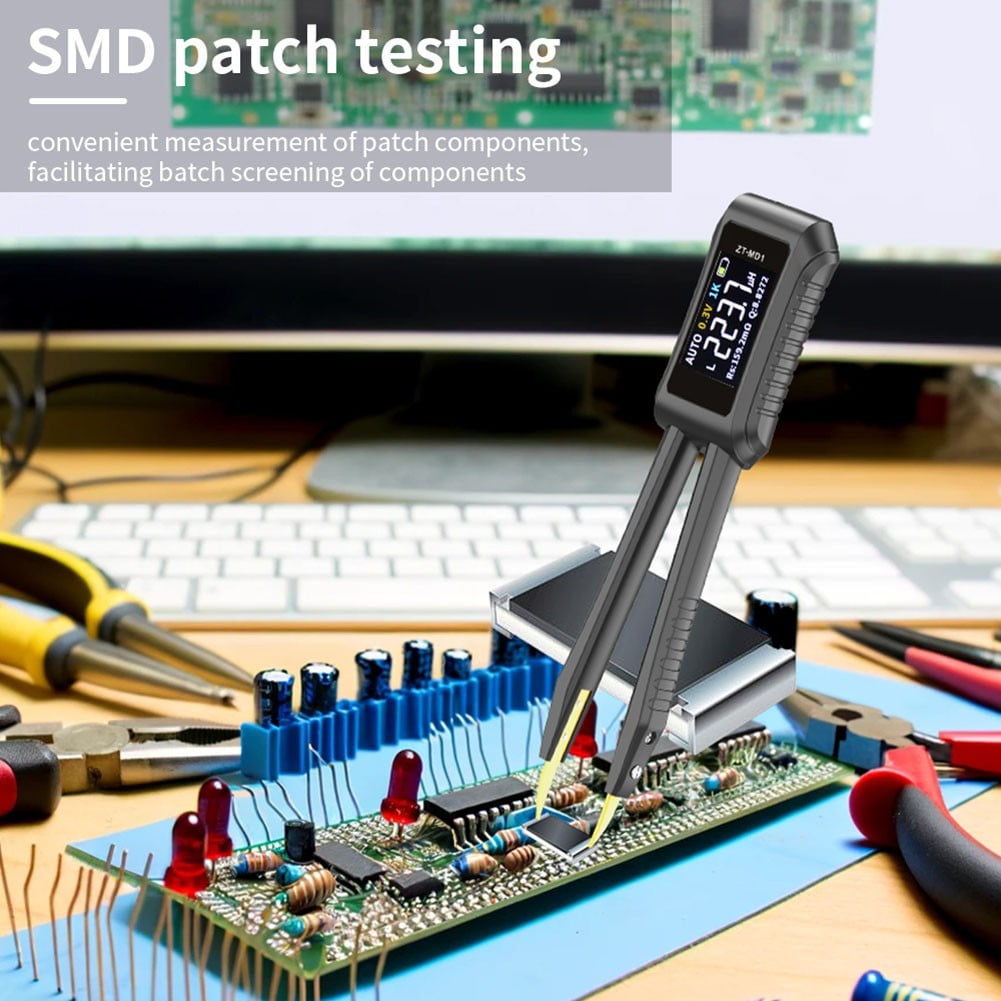

<p><strong>Features:</strong></p><p>LCR Test Bridge: A versatile tool that conveniently measures inductance (L), capacitance (C), and resistance (R). Allows you to easily and accurately test and analyze electronic components.</p><p>It is compact and fits in your pocket for easy transportation. You can use it in your lab, workbench, and warehouse.</p><p>This automatic scanning resistance and capacitance tester for SMD can accurately and quickly measure small chip components.</p><p>The probe can also be used to test traditional components whose leads are too short to be inserted into the test terminals.</p><p>Multi-frequency options: This LCR test bridge has 100Hz, 1KHz, and 10kHz frequency options, which is flexible to meet various test requirements. It allows you to adjust the frequency according to the needs of comprehensive analysis.</p><p><br></p><p><strong>Specifications:</strong></p><p>Part name: Digital tweezers tester</p><p>Material: ABS</p><p>Color: Black</p><p>Size: As shown in the figure</p><p>1. Product model: MD1</p><p>2. Capacitance range: 1pF-20mF</p><p>3. Inductance range: 1μh-60H</p><p>4. Resistance range: 10mΩ-10MΩ</p><p>5. Diode: 0.7V voltage</p><p>6. Test frequency: 100Hz, 1kHz, 10KHz</p><p>7. Test level: 0.3V, 0.6V RMS</p><p>8. Parameter display: L, C, R, D, Q, for&nbsp;RS</p><p>9. Screen: 1.14-inch color screen</p><p>10. Charging interface: Type C, 5V/A</p><p>11. Power supply: 400mAh lithium battery</p><p>12. Automatic identification measurement: Support</p><p>13. Replaceable tweezer head: bracket</p><p>14. Automatic shutdown: Support</p><p>15. Data retention: Support</p><p>16. History: Connect to PC to view and export</p><p>17. Language: Chinese, English</p><p>18. Size ：146*30*18mm</p><p>19.Weight: 41g</p><p>20.Gear: automatic range, resistance range</p><p>Capacitance range, inductance range, conduction range</p><p><br></p><p><strong>Package content:</strong></p><p>A:1*Tweezers tester + 1*Data cable + 1*Package + 1*Instruction manual</p><p>B:1*Tweezers tester + 1*Data cable + 1*Package + 1*Instruction manual + 2 straight tweezers</p><p>C:1*Tweezers tester + 1*Data cable + 1*Package + 1*Instruction manual + 2 bent tweezers</p><p><br></p><p></p><p><strong>Note:</strong></p><p>1: Please allow 1-2 cm error due to manual measurement, please make sure you do not mind before ordering.</p><p>2: Due to the difference between different monitors, the image may not reflect the actual color of the item</p><div><br></div><p><br><br></p><p><br></p>

• 【COMPREHENSIVE TESTING TOOL】 This ZT-MD1 Digital Multimeter intelligently measures inductance (L), capacitance (C), and resistance (R), allowing for accurate testing of electronic components in various settings.
• 【COMPACT AND PORTABLE】 Designed for convenience, this tester is compact enough to fit in your pocket, making it perfect for use in labs, workbenches, or on-the-go.
• 【MULTI-FREQUENCY OPTIONS】 With selectable frequencies of 100Hz, 1KHz, and 10KHz, you can tailor your measurements to meet specific testing requirements effectively.

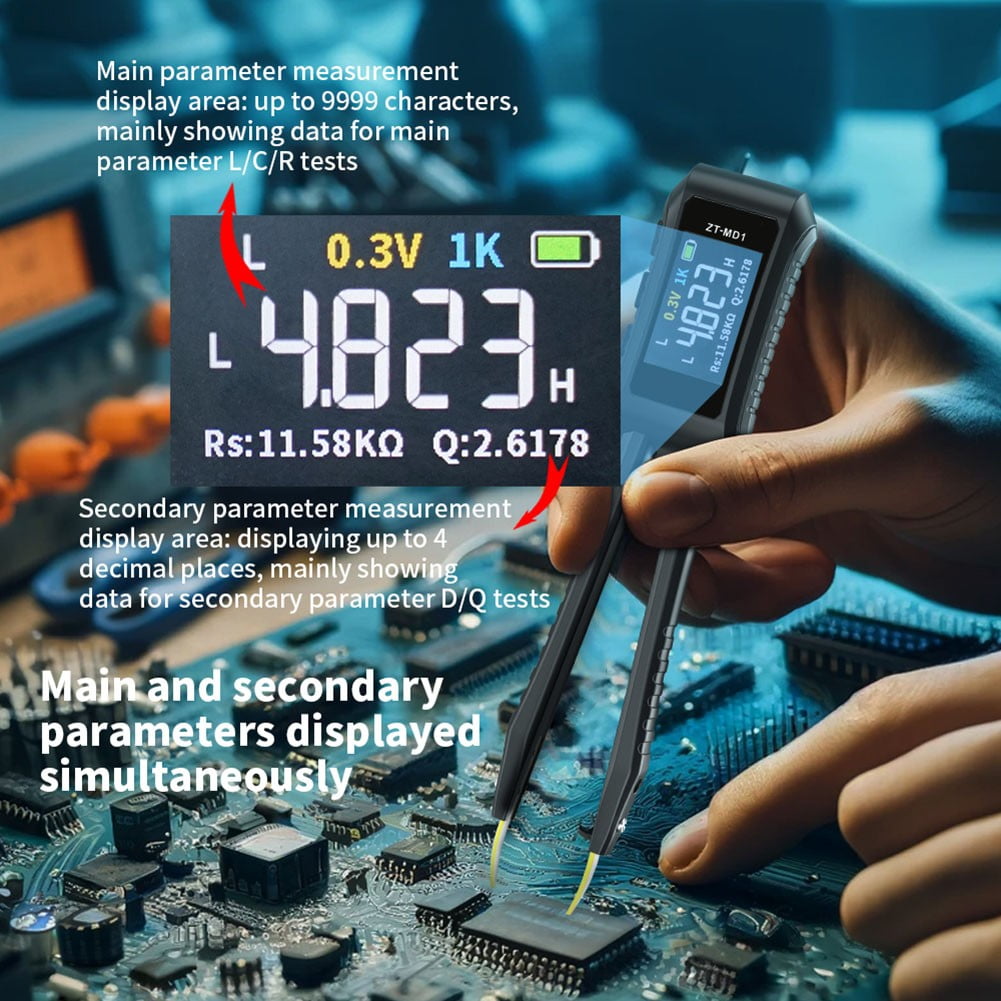

• 【USER-FRIENDLY DISPLAY】 The 14-inch color screen provides clear parameter displays including L, C, R, D, Q, and for easy reading and analysis.
• 【SIZING REMINDER】 Please refer to the size specifications provided in the images for accurate dimensions before purchasing.
