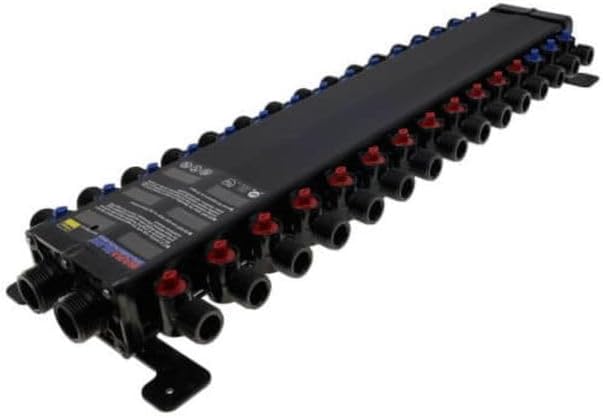

Viega 49625 30-Port ManaBloc without port or supply adapters., Black

Viega ManaBloc manifold with (30) PEX ports - (12) Hot and (18) Cold. Intended for use with ViegaPEX Ultra (Potable/Non-barrier) and Viega FostaPEX tubing and connection methods. Also compatible with all other types (A, B, C) and brands of PEX tubing. Each port (branch) is equipped with a built-in 1/4 turn shut-off valve for individual fixture control. NOTE: Supply adapters (which connect the main hot & cold pipe lines to the ManaBloc) and port adapters are not included and must be purchased separately. Accessories (supply end caps, port caps, brackets, etc.) are sold separately. Technical Specifications: Total Ports (Branches): 30 (12 Hot & 18 Cold) Hot/Cold Water Inlet Connections: 1" (manabloc adapters required) Branch spacing: 1-11/16" OC (On Center) Dimensions (L x H x W): 29-1/2" x 3" x 8" Max Pressure Rating: 100 psi @ 180°F Port (Branch) Pressure Drop: 3.4 psi @ 4.0 GPM Port K-Factor: 0.21 (for 1/2" PEX) Lead-free, approved for potable water use Meets NSF/ANSI 61 & 372, ASTM F876/F877, CSA B137.8 UPC-IAPMO Certified Made in the USA.

• Supply adapters or cap (3 required) which connect the main hot & cold pipe lines to the ManaBloc- and port adapters or caps (30 required) are not included and must be purchased separately. Accessories (supply end caps, port caps, brackets, etc.) are sold separately.
• Supply adapters are a 1" special Viega thread- only Viega brand supply adapters/caps may be used. The use of any other pipe fitting at these connections will strip the threads .
• Available fittings to complete the installation: 49224: 3/8" PolyAlloy Press x MANABLOC Port Adapter (Lead Free) 49234: 1/2" PolyAlloy Press x MANABLOC Port Adapter (Lead Free) 50023: 3/8" PolyAlloy Crimp x MANABLOC Port Adapter (Lead Free) 50133: 1/2" PolyAlloy Crimp x MANABLOC Port Adapter (Lead Free) 50141 1"manabloc thread x 3/4" pex crimp supply adapter (Lead Free) 50063 1" manibloc thread end cap.
