UYGALAXY 100W Greenhouse Film Roll Up Motor with Limit Switch, Waterproof Electric Film Curtain Roller Frame Shed DC 24V 2.8RPM for Greenhouse Automatic Ventilation(with Pivot Set)

The electric roll-up motor for ventilation, which is used extensively in the greenhouse. Such as the solar greenhouse, vegetable greenhouse, cultivation greenhouse, multi-span film greenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the roll of film. Longer Travel】Curtain travel width can be max 19ft of hoop house top. 【 Easy to carry】5~360ft roll tube of greenhouse for ventilation, it's suggested for 1-3/8in. outside diameter roll tube. 【 Automate the work】Simplified roll film work by pressing one knob after wiring to power reverse switch. 【 Best for】Roof of hoop greenhouse, collocate it with pivot set for quick installation. 【 1 Year warranty 】100% money back guarantee if the motor doesn't meet your ventilation needs. 【 Tips】Use top rail tubing for roll bar, the outside diameter is 1-3/8inch.

The electric roll-up motor for greenhouse is used extensively in Greenhouse.
Such as the solar greenhouse, vegetable greenhouse, culture greenhouse, multi-span filmgreenhouse and other assembled greenhouse, by which to open or close the side or top film curtain through the rolling film bar(it needs a power reverse switch to control).

Product Advantage
1. IP66 waterproof protection class.
2. Compact size and low noise, easy installation.
3. can be install on the top of greenhouse, and side of the greenhouse(needs creeper).
4. Roll up film tube length up to 360ft ; And 19ft height when OD 1 3/8inch (Outside Diameter 34.9mm) roll up tube
5. Setting the limit switches on hoop house roll up ventilation motors.

Specifications
Power: 100 watt
Travel Limit: 40 rotations
Voltage: DC 24v
Speed: 2.8rpm
Rated Current: 4.0A
Torque: 80N.m
Protection Class: IP66
Maximum roll bar length: 360ft (110m)
Color: Blue and grey

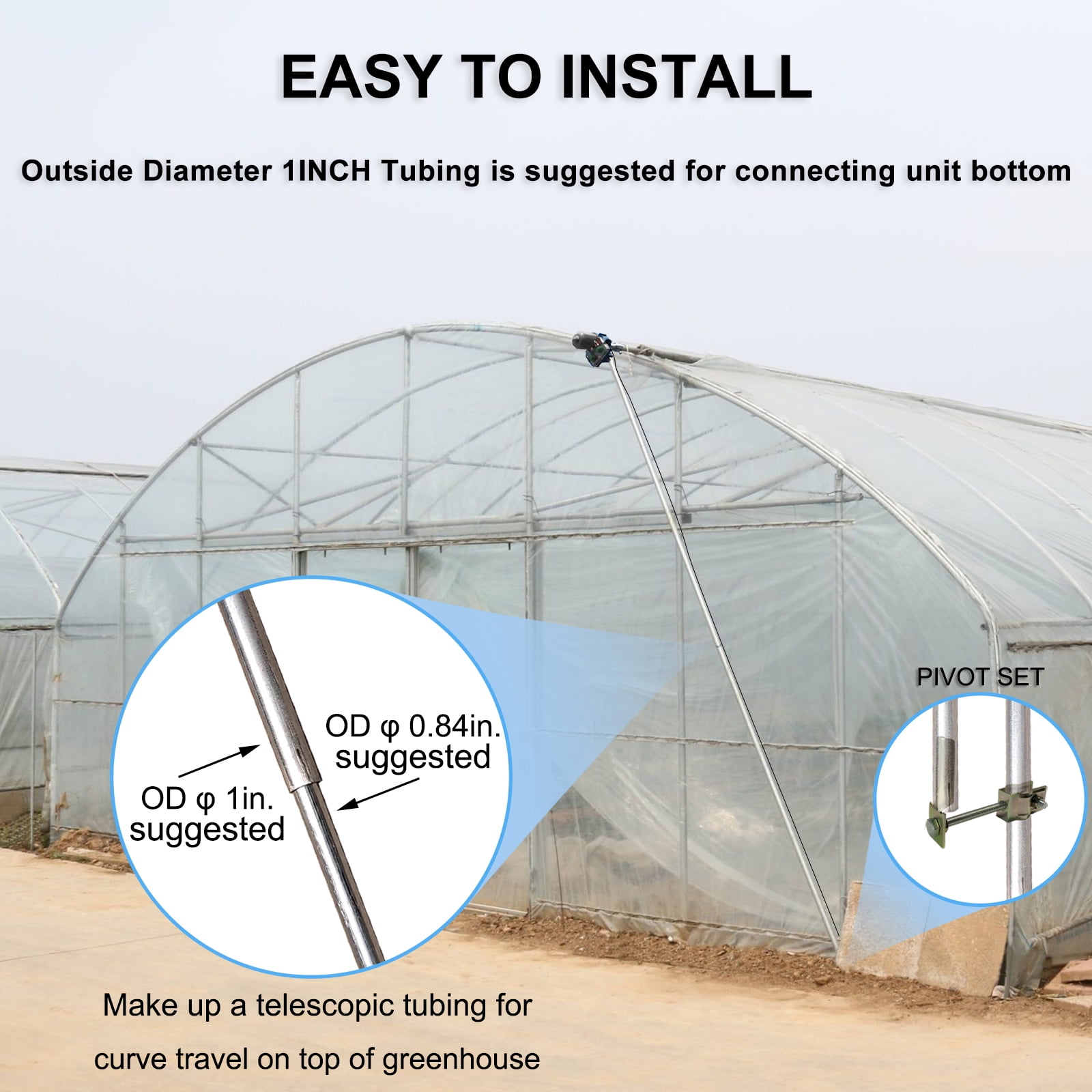

How to install:

1. Tighten the roll tube with the product by bolts
2. Fix the film on the film tube through the solid film clamp, keeping the film tube in line with the output shaft(roll bar) of the motor.
3. After fixing and starting the winder power supply, the film tube can be opened and closed.

The galvanized tube used for roll bar can be NPS 1inch, DN25mm or 1-3/8inch top rail:

Material selection:

1. It's recommended 16AWG cord if within 164ft(50m) from the motors to controller or power.
2. If connect 20 sets of motors to 1 transformer, it is recommended to use 3 AWG aluminum cord or 7 AWG copper cord as the main line to connect to transformer( the motors in parallel.)
3. If 20 electric roll up motors are connected at the same time, it is recommended to use 1600W ~ 2000W transformer.

Greenhouse type	Hoop
Frame material	metal, plastic
Height	5.39"
Brand	UYGALAXY
Features	Waterproof
Rec location	Outdoor
Weight	8.4 lb
Model	1
