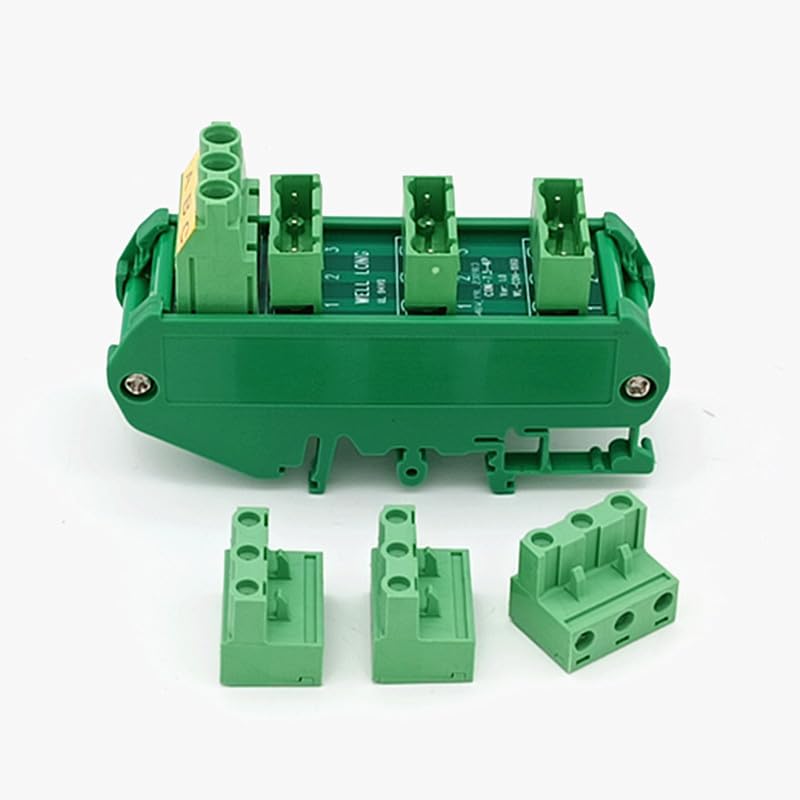

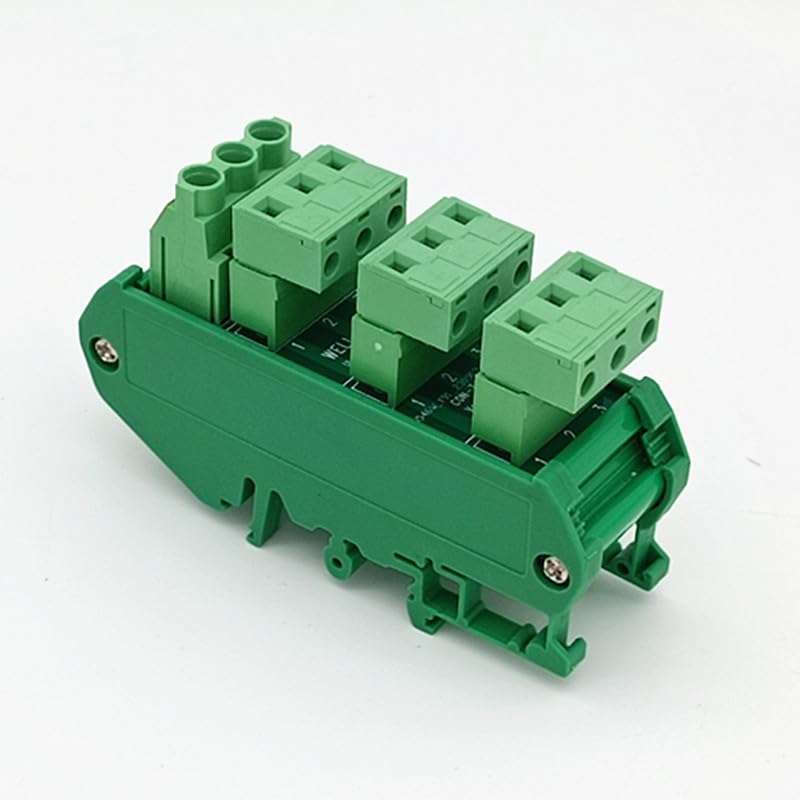

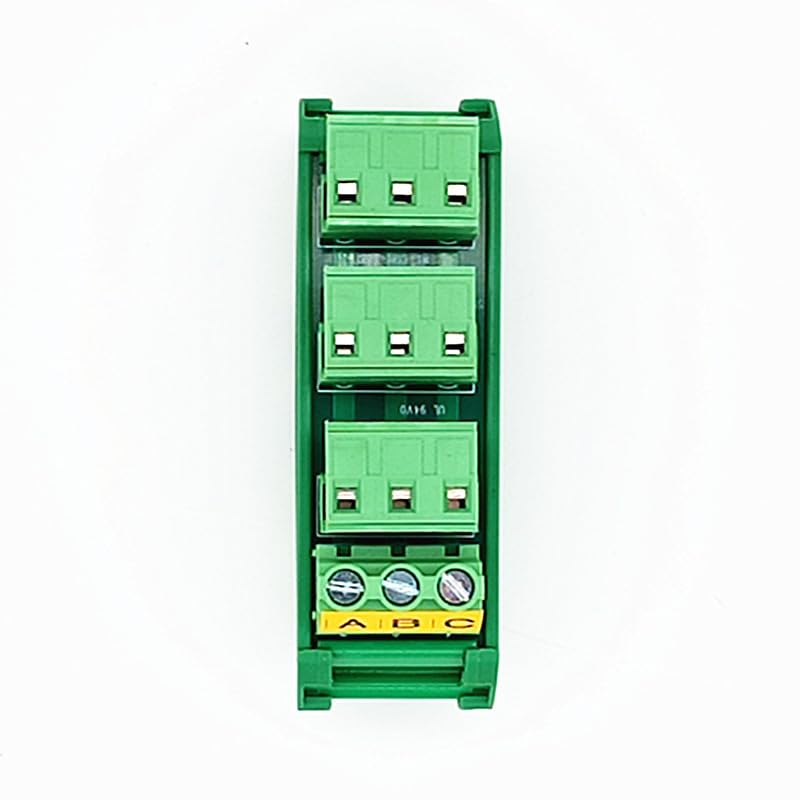

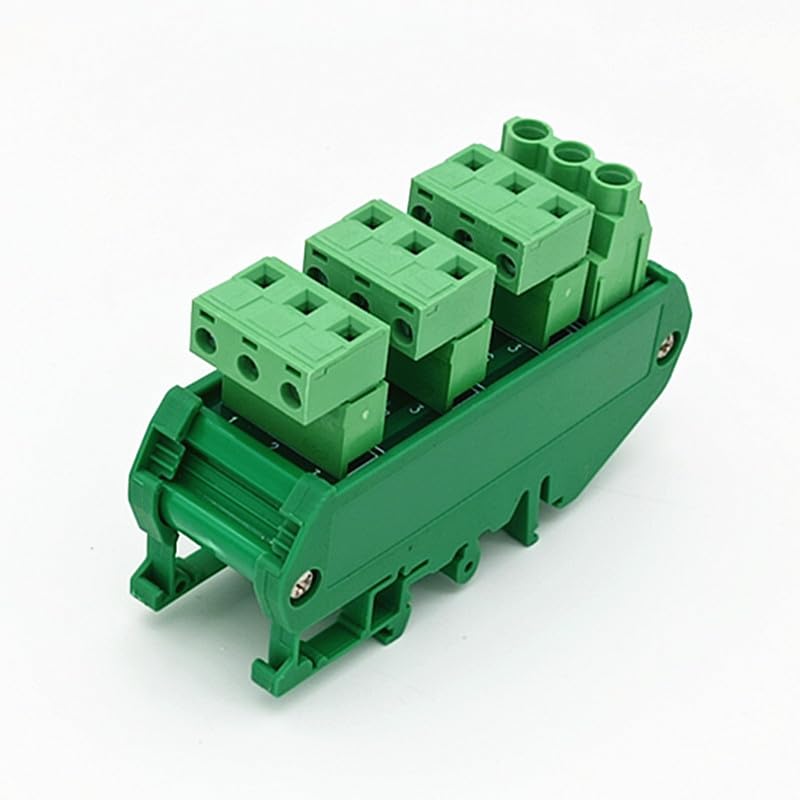

Slim DIN Rail Mount 30A/300V 3x3 Position Pluggable Terminal Block Distribution Module.
Product details
| Management number | 247532416 | Release Date | 2026/08/16 | List Price | US$6.39 | Model Number | 247532416 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, DIN rail mount 30Amp 300V 3x3 position screw terminal block distribution module.2,High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail.3,FR-4 fiber glass PCB.4,Product External dimensions: 89x 30x 55mm(W x L x H).5, Terminal block INLET A / B / C positions, maximum current 30Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.6, Pluggable screw terminal blocks, maximum current 20Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- DIN rail mount 30Amp 300V 3x3 position screw terminal block distribution module.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. FR-4 fiber glass PCB. Product External dimensions: 89x 30x 55mm(W x L x H).

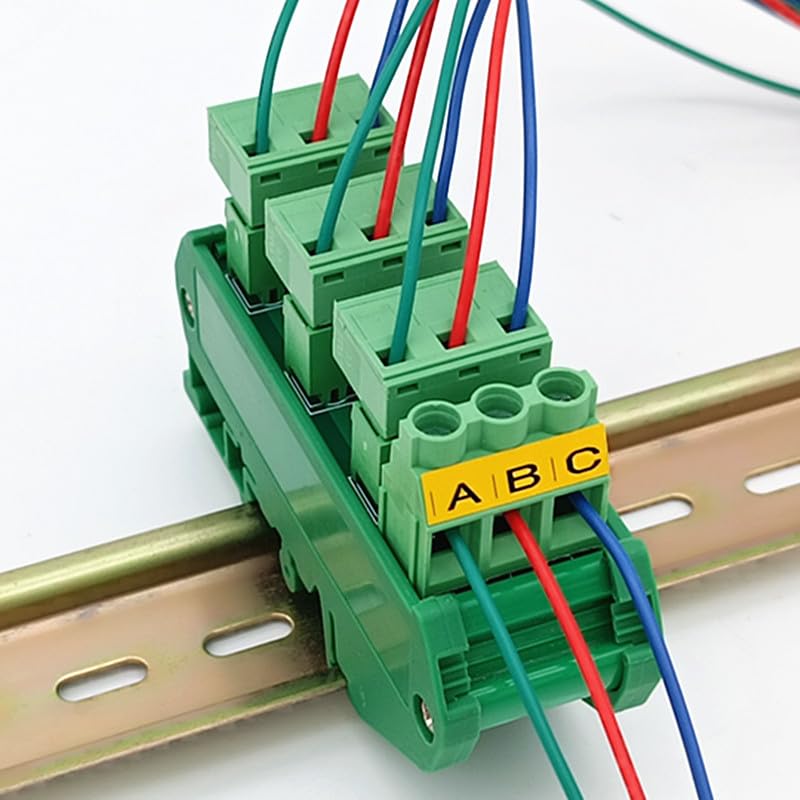

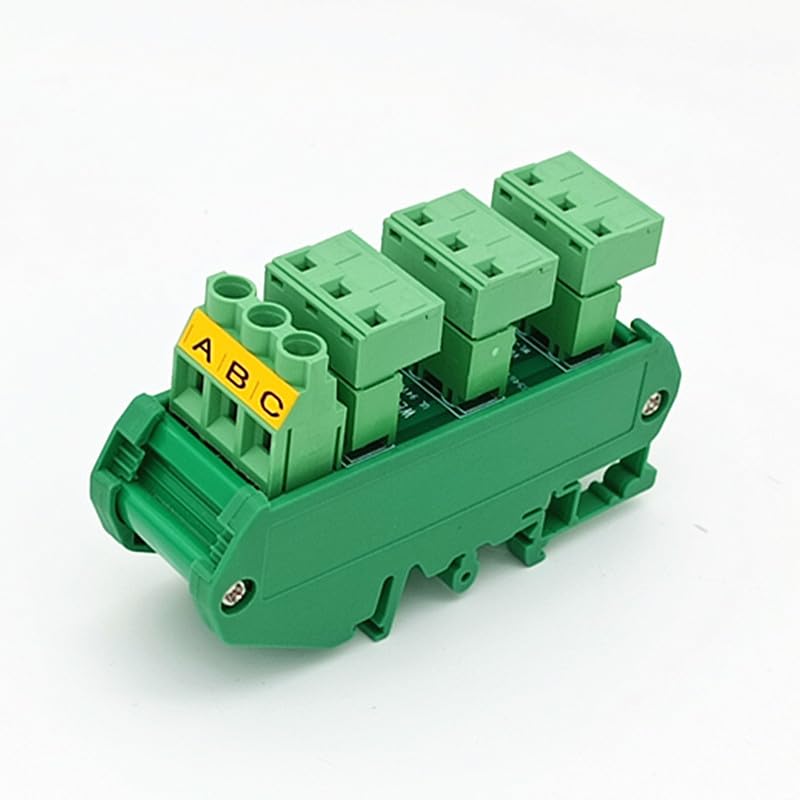

- Terminal block INLET A / B / C positions, maximum current 30Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- Pluggable screw terminal blocks, maximum current 20Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
| ASIN | B0F9PVBX12 |
|---|---|
| Color | Green |
| Model | WL-CON-1060 |
| Pitch | 0.1 inches |
| Voltage | 300 volts |
| Brand Name | SZ-WEEL LONG |
| Part Number | WL-CON-1060 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Idc Header |
| Current Rating | 30 A |
| Number Of Poles | 3 |
| Number of Items | 1 |
| Specification Met | UL |
| Temperature Range | -20to50 °C |
| Number Of Contacts | 3 |
| Included Components | Terminal Block, Connector, Din Rail Mount |
| Number of Positions | 3 |
| Item Dimensions W x H | 7.1"W x 2.1"H |
| Upper Temperature Rating | 50 °C |
