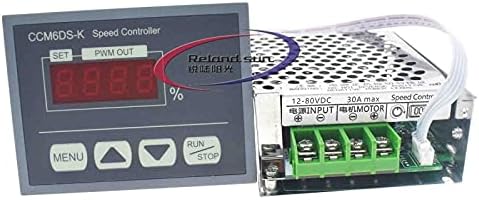

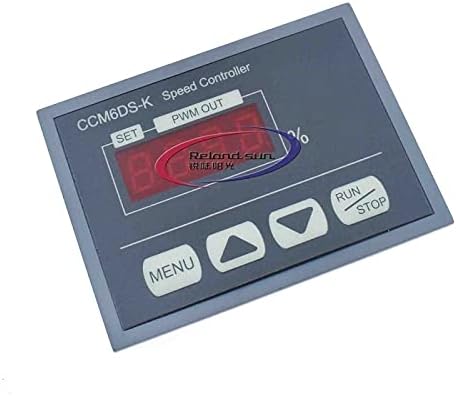

Reland Sun CCM6DS-K Wholesale High Power 12V-80V DC 30A LED Digital Display PWM HHO RC DC Motor Speed Controller

This new product features a digital touch screen, on which you can see all parameters and operate directly. You can set varied parameters of speed regulation through the screen easily and freely. Besides, its rated current is 30 amp, so it's a large power speed controller. All in all, it's multi-functional and very easy to use. Specifications: Input Voltage: DC 12V-80V Output Voltage: 0-100% of the input voltage Maximum Current: 30A Control Power: 12V 250W or less, 24V 350W or less, 48V 500W or less Speed range: 0~100% PWM frequency: 21 kHz Controller Size: 110 mmx 77 mm x 36 mm / 4.37 x 3.03 x 1.41" Panel Size: 92 mm x 69 mm x 13 mm / 3.62 x 2.71 x 0.51" Instruction: Set 1: "000"-"100", Slow start to 100% speed time is adjustable between 0-10.0 seconds, the default is 1 second. Set 2: "000"-"100", Slow stop time is adjustable between 0-10.0 seconds, the default is 1 second. Set 3: "000"-"080", The minimum speed is adjustable from 0 to 80%, and is less than the maximum speed setting value, the default is 0. Set 4: "000"-"100", The maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%. Set 5: "000", "002" , "005" , "010" , "015", "020" , "025", The speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25% each time you press the up or down button. Package Includes: 1 x Speed Controller

• Speed range: 0-100%
• Frequency: 21Khz
• Input Voltage: DC 12V-80V
• Maximum Current: 30A
