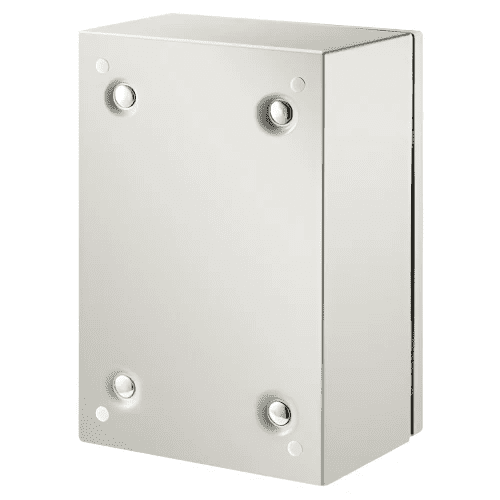

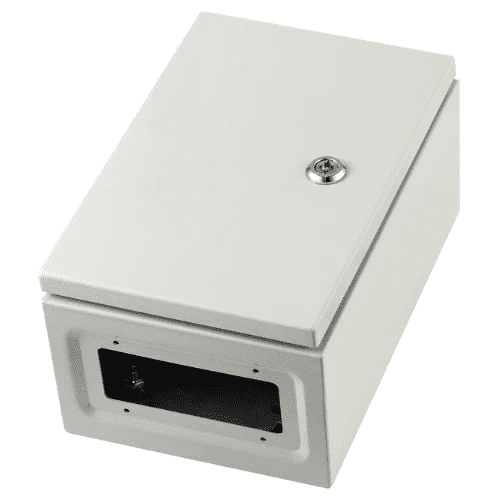

NEMA 4X Steel Enclosure 12 x 8 x 6'' Electrical Junction Box IP66

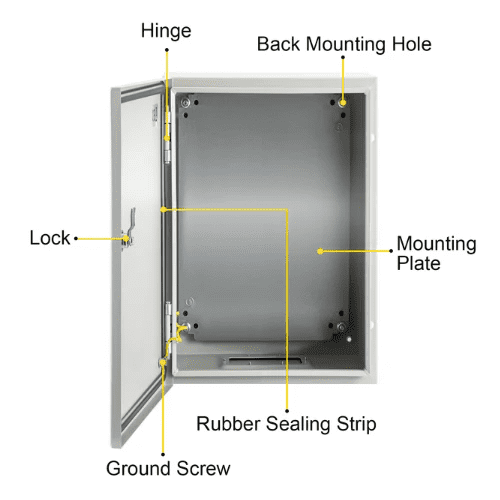

Robust Steel Construction Crafted from 1.5 mm cold-rolled steel, this electrical enclosure is precision-cut and welded for exceptional strength and durability. Certified with CE and RoHS. IP66 Waterproof & Dustproof Equipped with a high-performance foam sealing strip, the enclosure achieves an IP66 protection rating—preventing the ingress of dust, dirt, and water, even when the lid is open. Secure Lock & Reinforced Hinges The enclosure features a high-strength hinged cover and a durable lock core, ensuring secure closure and resistance against impact or tampering. Easy Installation Includes a detachable galvanized mounting backplate for quick and flexible installation of electrical components. Four pre-drilled mounting holes at the back allow for fast and stable wall mounting. Thoughtful Design Features Designed with a cable-friendly bottom for easy threading, pre-installed grounding screws, and smooth, burr-free cutouts to prevent cable damage—ensuring a clean and safe setup.

• ‌Model: SPT
• Material: 1.5 mm Carbon Steel
• Coating: Epoxy Polyester Powder Coating
• Connection Type: Hinged
• Mounting Plate: 2 mm Detachable Galvanized Backplate
• Features: Lockable, Waterproof
• Galvanized Backplate Dimensions: 9.8" x 6" (250 x 152 mm)
• Dimensions (H x W x D):
• Outer: 12" x 8" x 6" (305 x 203 x 152 mm)
• Inner: 11.7" x 7.8" x 4.6" (297 x 198 x 117 mm)
• Color: Gray White
• Weight: 11.24 lbs / 5.1 kg
• Certification: CE / RoHS
