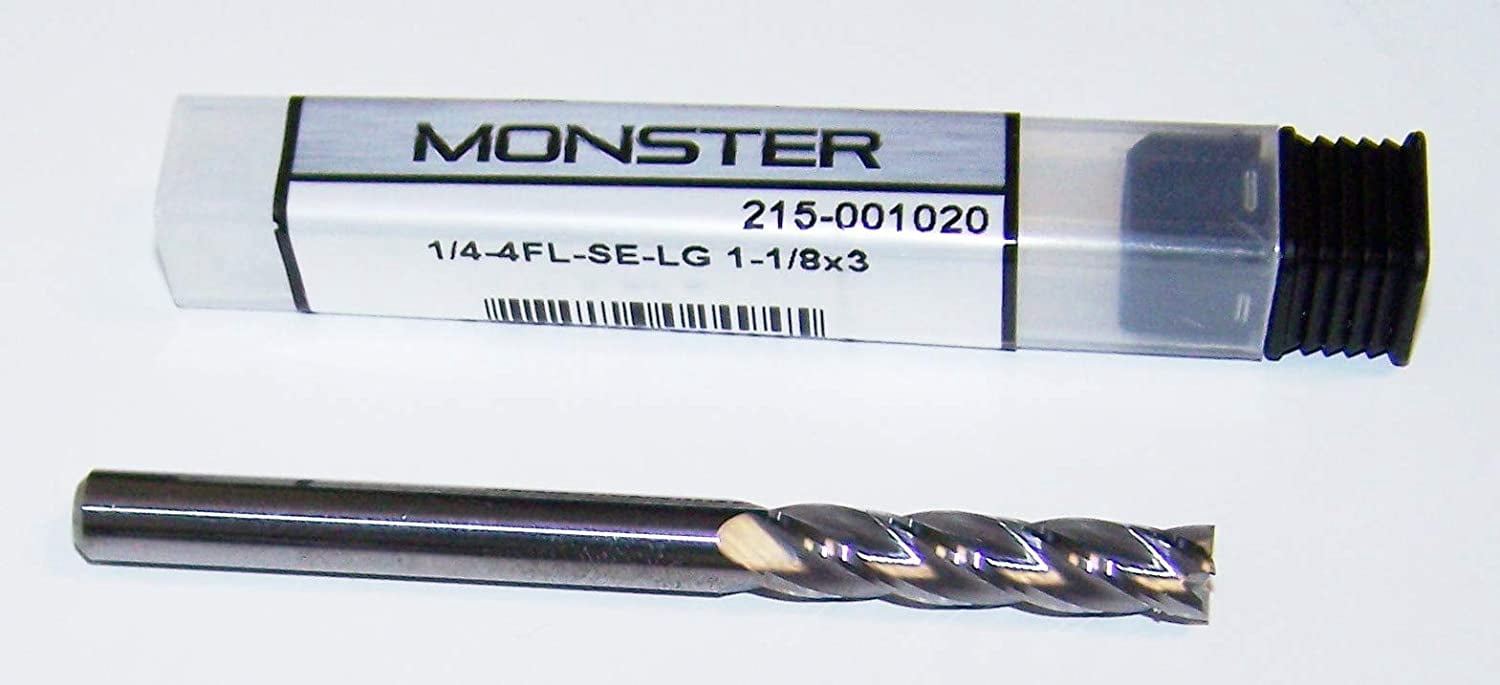

Manufacturer Varies Carbide End Mill, 1/4In, 4FL, Single, 3In 215-001020

Square End Mill, 0.25 in Milling Dia., Carbide, Uncoated, Non-Coolant Through, Straight, Length of Cut 1.125 in, Overall Length 3 in, Shank Dia. 1/4 in, Neck Dia. Not Applicable

• Coolant Fed:Non-Coolant Through
• Cutting Direction - Machining:Right Hand
• Cutting Direction:Right Hand
• Dimension Type:Fractional Inch
• Drilling Tool Configuration:Individual
• End Mill Application:Roughing/Finishing
• End Mill Cutting Type:Center Cutting
• End Mill Material:Carbide
• End Mill Style:Square
• Finish - Machining:Uncoated
• Finish:Bright (Uncoated)
• Helix Angle:30 Degrees
• Item:Square End Mill
• Length of Cut:1.125 in
• List Number:203
• Material - Machining:Carbide
• Material Grade - Machining:C2 Micrograin
• Max. Helix Angle:30 Degrees
• Measurement System:Inch
• Milling Dia.:0.25 in
• Milling Diameter:1/4"
• Number of Flutes:4
• Overall Length:3 in
• Primary Material Application ISO Code:H, K, N, P
• Primary Material Application:Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Steel, Tool and Die Steel
• Secondary Material Application ISO Code:H, K, N, P
• Secondary Material Application:Cast Iron, Hardened Steel, Steel
• Shank Dia.:1/4 in
• Shank Type - Machining:Straight
• Shank Type:Straight
• Single End/Double End:Single
