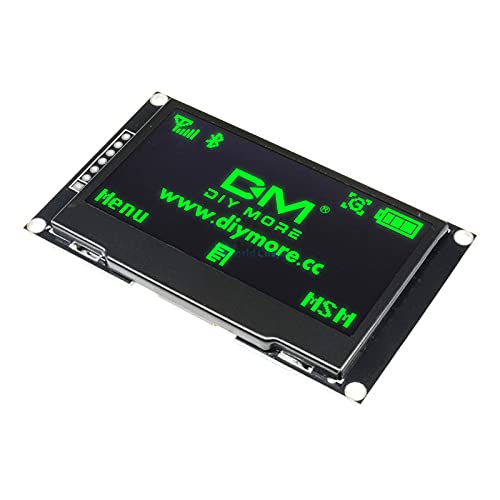

Green 2.42" 2.42 inch LCD Screen 128x64 OLED Display Module IIC I2C SPI Serial 12864 OLED Display for C51 STM32 SPD0301
Product details
| Management number | 247502728 | Release Date | 2026/08/16 | List Price | US$11.35 | Model Number | 247502728 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

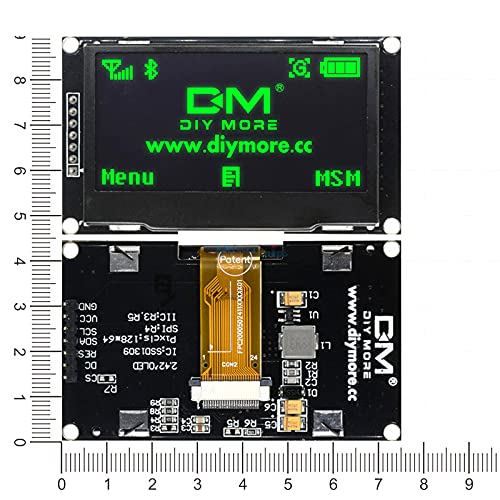

Features: Diagonal Screen Size: 2.42" Resolution: 128 * 64 Driver IC: SSD1309 SPI interface definition: 1.GND (power ground) 2.VCC (power supply positive) 3.SCL (clock line) 4.SDA (data line) 5.RES (reset line) 6.DC (data / command) 7.CS (chip select) Convenience. Interface Selection: to choose SPI or IIC interface through R3, R4, R5 For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor. SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5 Package: 1PCS * 2.42" 12864 OLED Display Module IIC I2C SPI Serial LCD Screen for C51 STM32 SSD1309
- Green 2.42" 2.42 inch LCD Screen 128x64 OLED Display Module IIC I2C SPI Serial 12864 OLED Display for C51 STM32 SPD0301
| ASIN | B0982CJVVX |
|---|---|
| Manufacturer | Midzoo |
