Choice Parts 67006322 for Whirlpool Maytag Refrigerator Water Solenoid Inlet Valve Pump

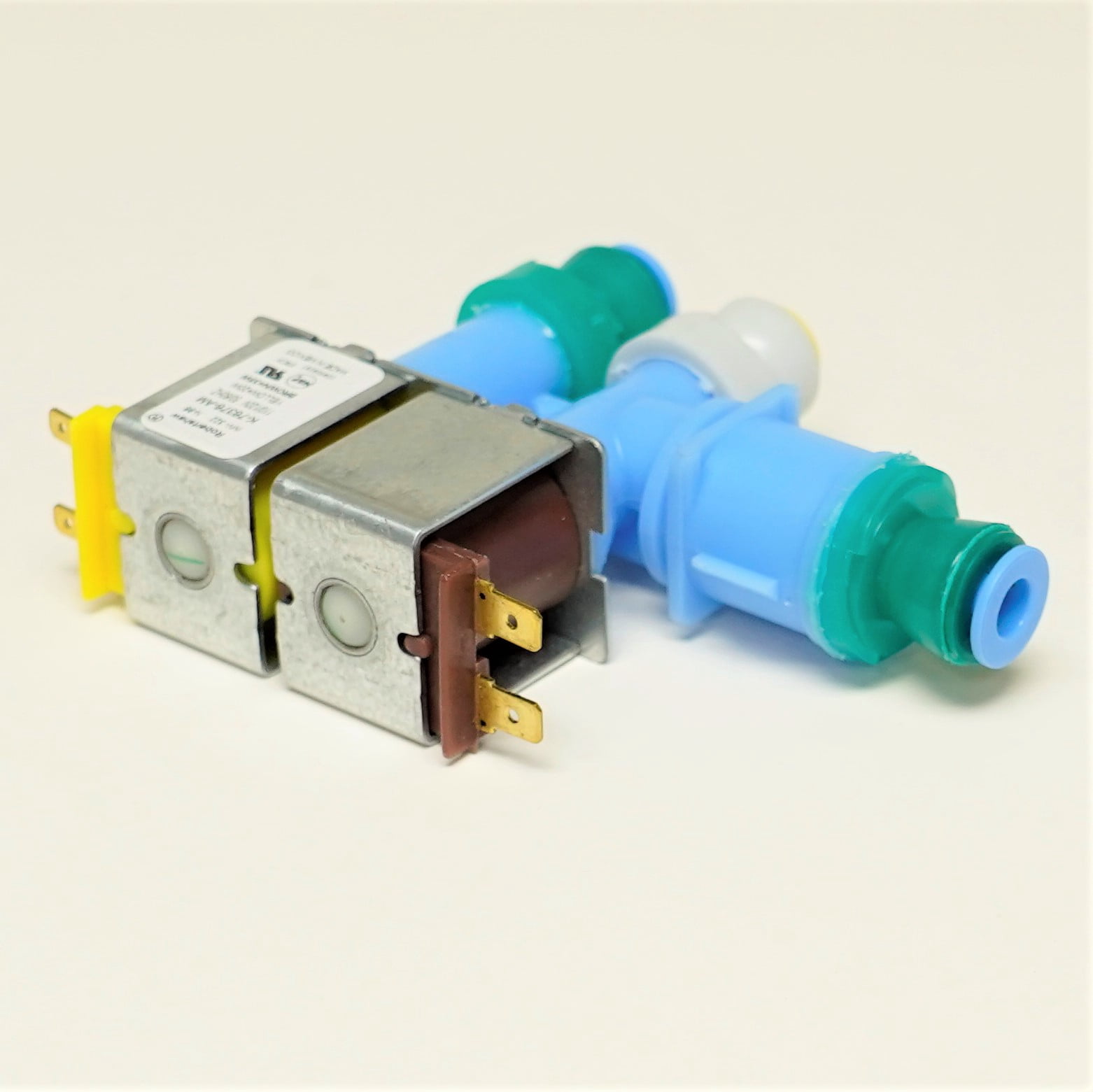

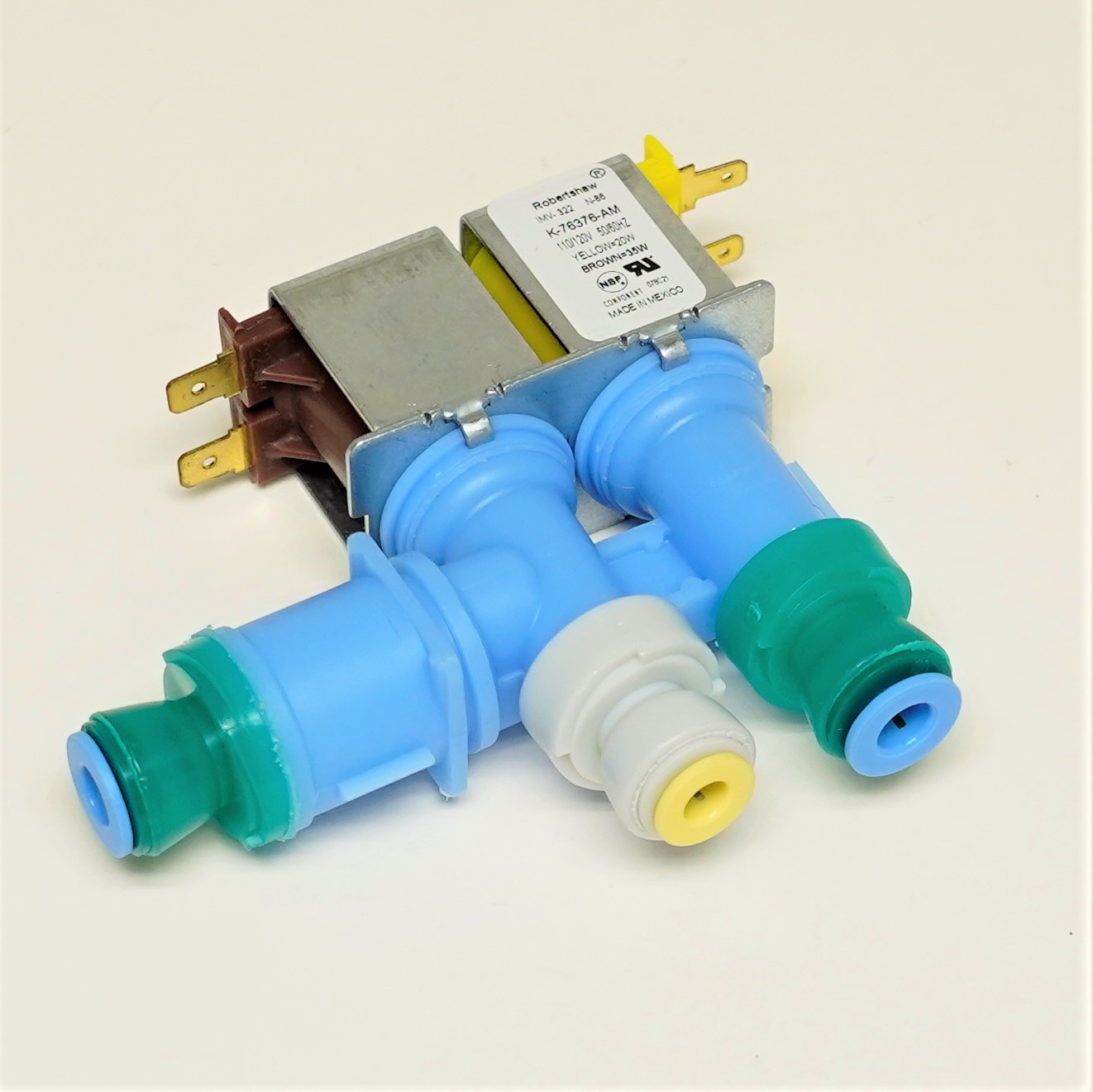

<p>Refrigerator Dual Water Inlet Valve &amp; 120V, 60Hz. Replaces Maytag 67006322. Choice Manufactured Parts 67006322CM Restore proper water flow to your refrigerator’s ice maker and water dispenser with this brand-new dual solenoid water valve from Choice Manufactured Parts, part 67006322CM. Engineered to replace OEM part 67006322, this valve features two color-coded coils for precise control and quick-disconnect fittings for easy installation. Compatible with Whirlpool, Maytag, Jenn-Air, Magic Chef, and Admiral French door refrigerators.</p>

• Product Specifications:

  • Voltage: 120V
  • Frequency: 60Hz

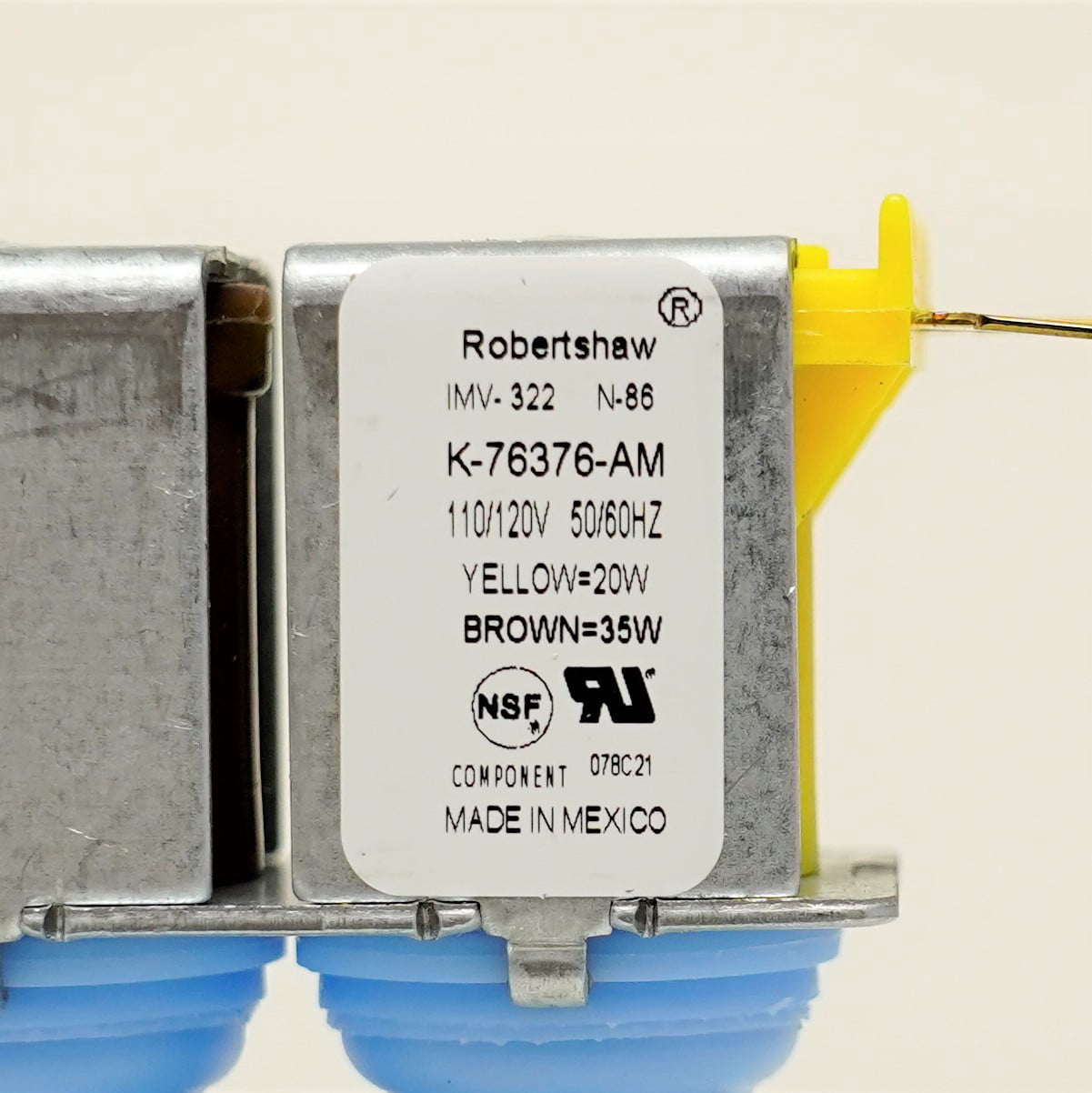

  • Brown Coil: 35W with 1/4" terminals
  • Yellow Coil: 20W with 3/16" terminals

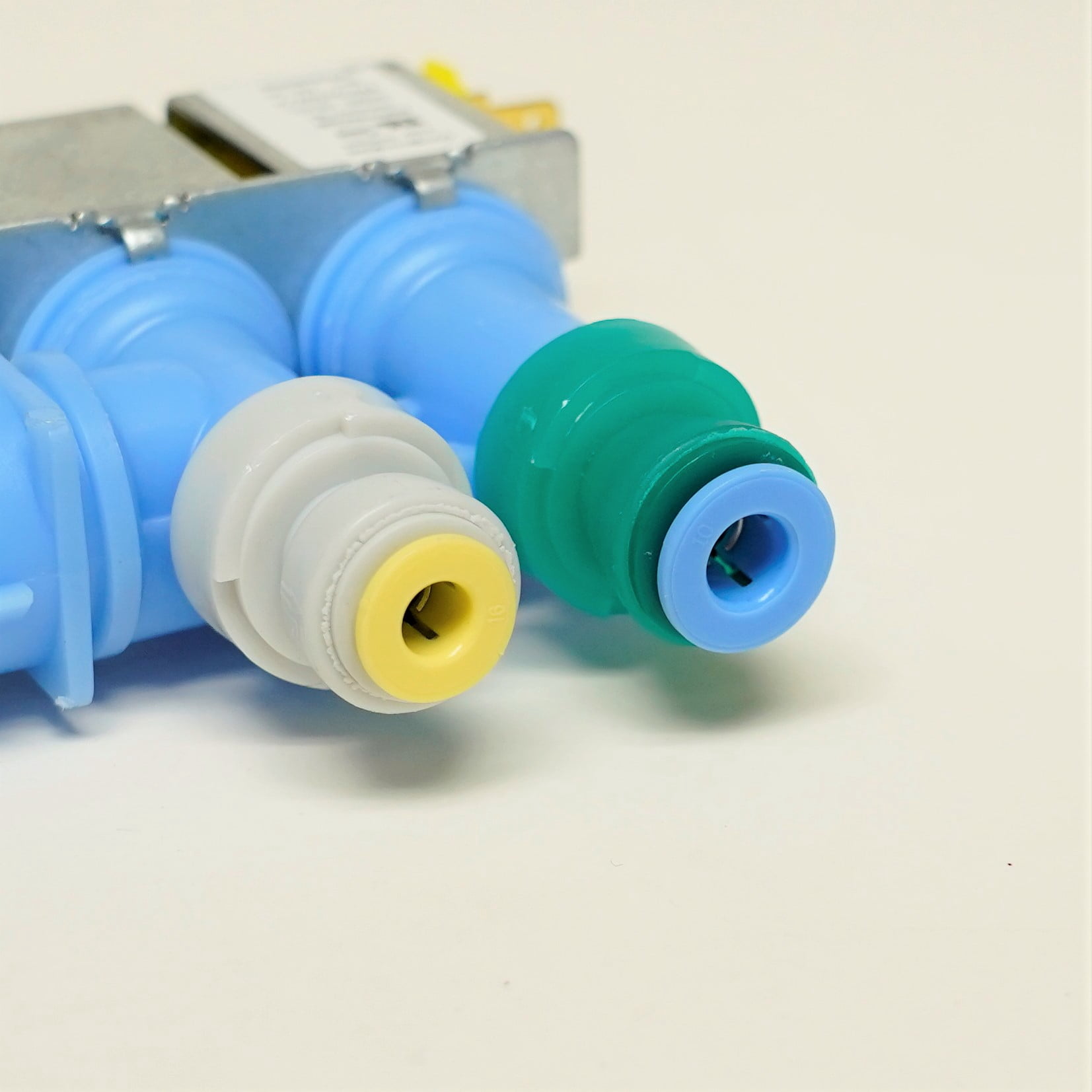

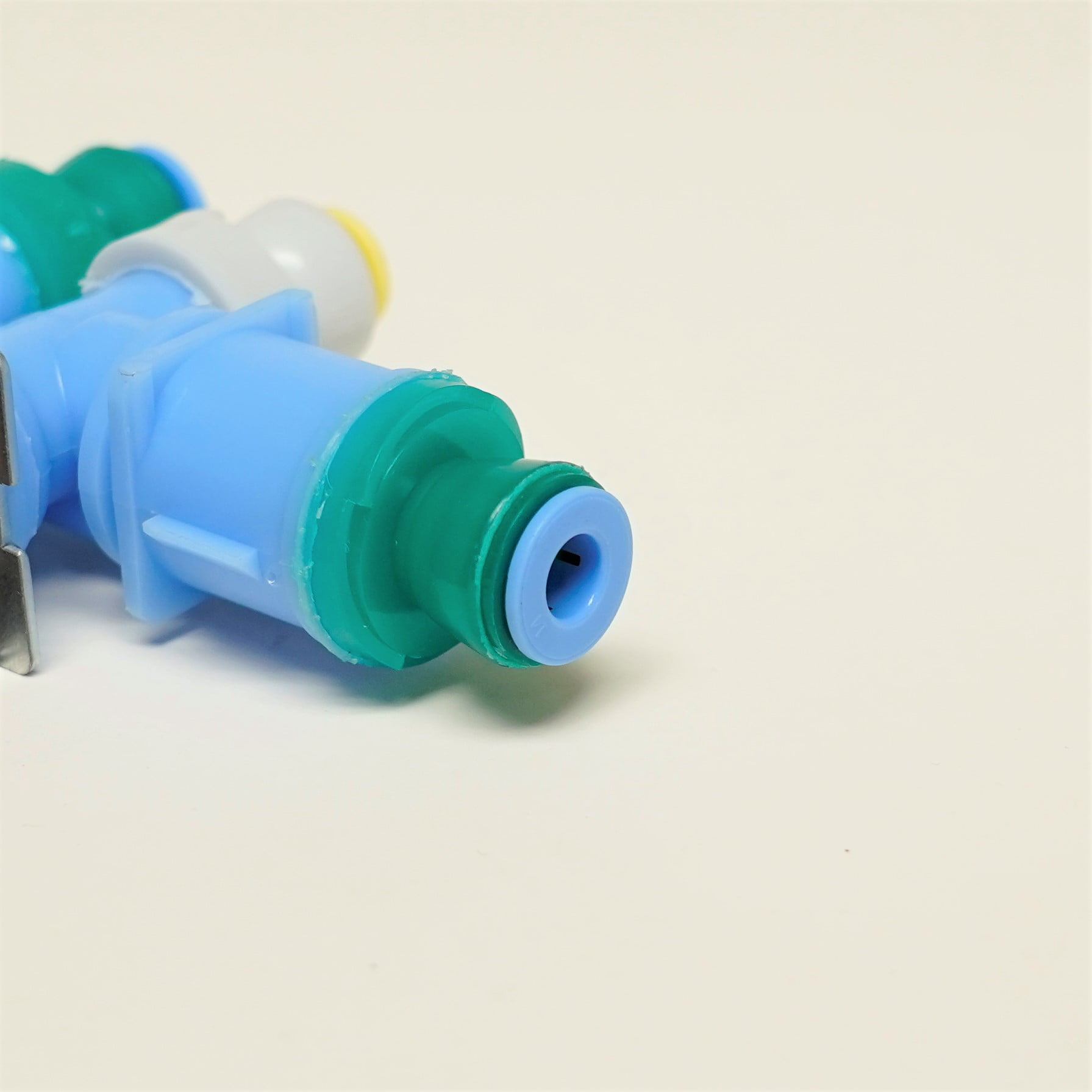

  • Inlet: 5/16"
  • Outlets: 1/4" and 5/16"
  • Quick-disconnect fittings for fast, secure installation
  • Condition: Brand New & Unused Replaces OEM Part Numbers: AP4081950, 1187201, 12956102, AH2069865, EA2069865, PS2069865, 67006322 Compatible Refrigerator Models Include: Whirlpool, Maytag, Jenn-Air French door models including: 7GI5FSAXVY00 , 7MI2569VEM10 , AFI2538AEB , AFI2538AEB00 , AFI2538AEB00 , AFI2538AEB12 , AFI2538AEB13 , AFI2538AEB3 , AFI2538AEQ , AFI2538AEQ00 , AFI2538AEQ00 , AFI2538AEQ12 , AFI2538AEQ13 , AFI2538AEQ3 , AFI2538AES , AFI2538AES00 , AFI2538AES00 , AFI2538AES12 , AFI2538AES13 , AFI2538AES3 , AFI2538AEW , AFI2538AEW00 , AFI2538AEW00 , AFI2538AEW12 , AFI2538AEW13 , AFI2538AEW3 , GI0FSAXVA00 , GI0FSAXVB00 , GI0FSAXVQ00 , GI0FSAXVY00 , GI5FSAXVA00 , GI5FSAXVB00 , GI5FSAXVQ00 , GI5FSAXVY00 , GI5FVAXVB00 , GI5FVAXVL00 , GI5FVAXVQ00 , GI5SVAXVB00 , GI5SVAXVL00 , GI5SVAXVQ00 , JFI2089AEB10 , JFI2089AEP10 , JFI2089AES10 , JFI2089AEW10 , JFI2089ATS10 , JFI2589AEP10 , JFI2589AES10 , KFIS20XVBL00 , KFIS20XVMS00 , KFIS20XVWH00 , KFIS25XVBL00 , KFIS25XVMS00 , KFIS25XVWH00 , MFI2067AEB , MFI2067AEB12 , MFI2067AEB13 , MFI2067AEQ , MFI2067AEQ12 , MFI2067AEQ13 , MFI2067AES , MFI2067AES12 , MFI2067AES13 , MFI2067AEW , MFI2067AEW12 , MFI2067AEW13 , MFI2266AEB10 , MFI2266AEB11 , MFI2266AEQ10 , MFI2266AEQ11 , MFI2266AES10 , MFI2266AES11 , MFI2266AEU10 , MFI2266AEU11 , MFI2266AEW10 , MFI2266AEW11 , MFI2269VEA10 , MFI2269VEB10 , MFI2269VEM10 , MFI2269VEQ10 , MFI2269VEW10 , MFI2568AEB , MFI2568AEB12 , MFI2568AEB13 , MFI2568AEQ , MFI2568AEQ12 , MFI2568AEQ13 , MFI2568AES , MFI2568AES12 , MFI2568AES13 , MFI2568AEW , MFI2568AEW12 , MFI2568AEW13 , MFI2569VEA10 , MFI2569VEB10 , MFI2569VEM10 , MFI2569VEQ10 , MFI2569VEW10 and many more. Installation Tips:
  • Disconnect power and water supply before servicing
  • Access valve from rear lower panel of refrigerator
  • Take reference photos of tubing and wire connections
  • Remove old valve and install new unit using original mounting screws
