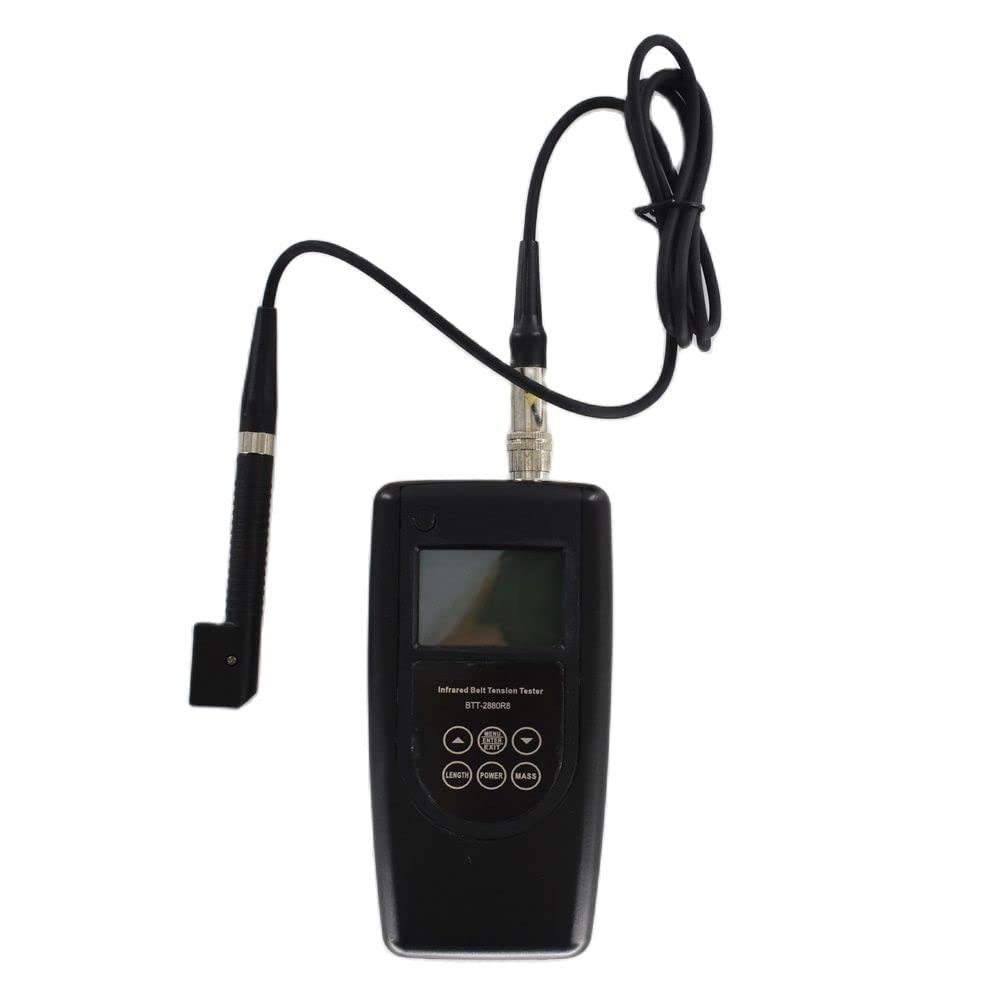

BTT-2880R8 Infrared Belt Tension Meter Range 10~800Hz Digital Tensiometer BTT2880R8

Applications:The Infrared Belt Tension Meter can measure the belt tension of motor and other machines quickly.Parameters:Measurement Range:10~800HzInput Range:Free Belt Length Max 99.99m, Belt Mass Max 9.999kg/mDigital Sampling Error:<1%Display Error:±1HzTotal Error:<5%Operating Temperature Range:+10~50°CTransportation Temperature Range:-5~70°CUnit of MeasurementMetric: m, kg/m, N Imperial: Inch, lbs/foot, lbfOptical Path Measurement Distance:3~20mmDepth of Split Sensor:About 66mmPower Supply:4x1.5V AAA (UM-4) BatterySize:Main Unit: 178x72x34mm Sensor: 124x21x12mmWeight:180g (Not Including Battery)Standard Accessories:Main Unit,Split Sensor,Carrying Case (B04),Operation Manual

• BTT-2880R8 tensiometer can measure the natural vibration frequency of the belt through the emission and reception of the laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.
• Using laser sensor, direct measurement, more convenient than mechanical sensor.
• The size of the split sensor is small, which is suitable for measuring in a narrow space.
• Two kinds of sensors selectable, the integrated sensor and the split sensor.
• Metric or imperial units can be used to display readings.
