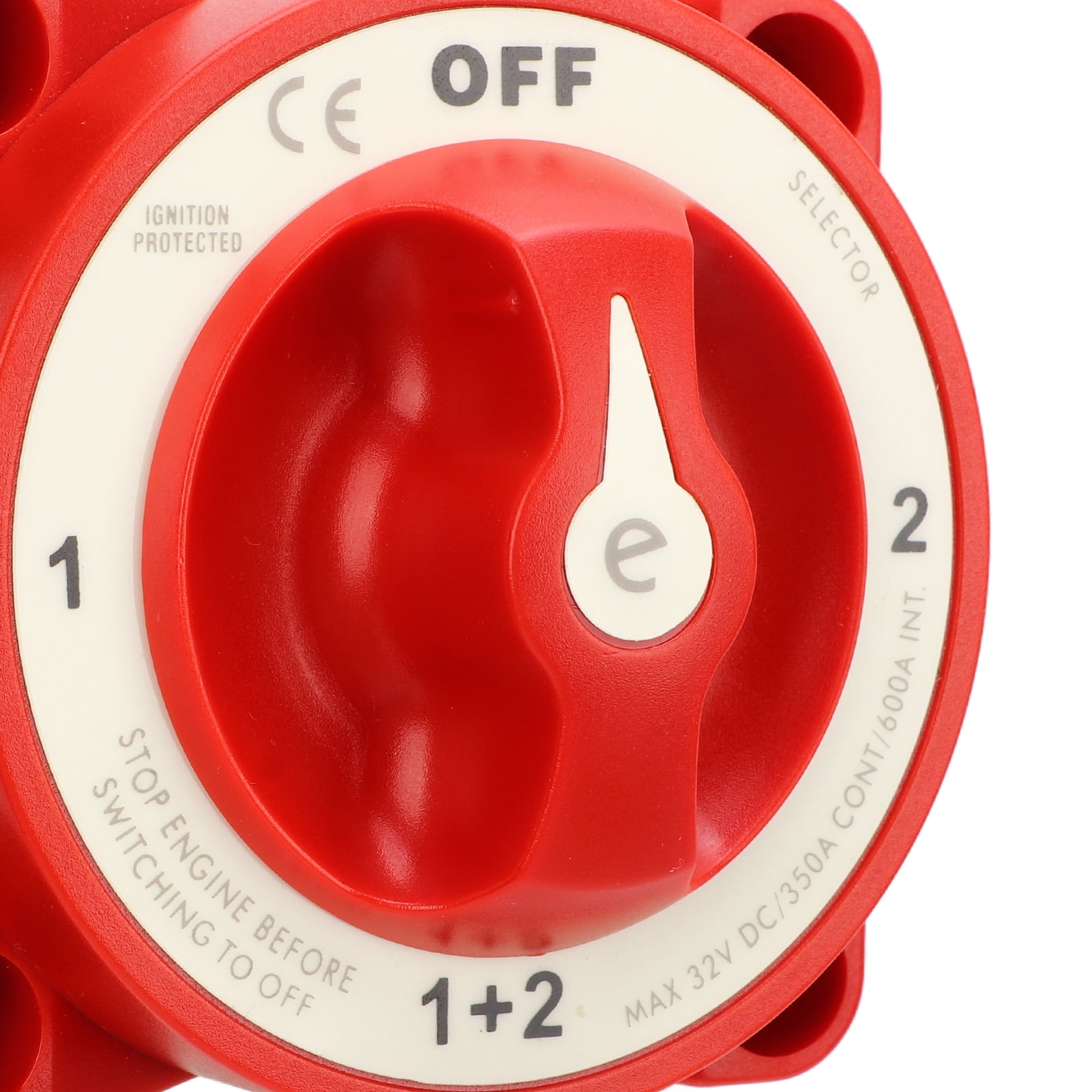

Battery Disconnect Switch 4 Gear Position Power Off Isolation for Marine Boat Yacht RV

Feature: 1. Main Purpose: Switches isolated battery banks to all loads or combines battery banks to all loads, and includes AFD (Alternator Field Disconnect). 2. Product Features: Make before break contact design allows switching between battery banks without power interruption, which has ignition protection. 3. Easy Installation: Case design allows surface or rear panel mounting, with compact structure for easy and safe installation on gasoline powered boats. 4. Standard Size: With 3/8in‑16 studs, which accepts 3/8in and M10 ring terminals, and 7/8in (22.22mm) stud length to accept multiple cable terminals. 5. Wide Application: The battery power off switch has good practicability and high reliability, suitable for marine boat RV, large trucks, modified cars, etc. Specification: Item Type: Battery Disconnect Switch Material: ABS Plastic Shell, Tinned Copper Gear Position: OFF-1-2-1+2 Maximum Voltage: 32V DC Continuous Rating: 350A Intermittent Rating: 600A (5 minutes) Startup Rating For 30 Seconds: 1200A Waterproof Grade: IP66 Binding Post: 3pcs M10 Terminal Size: 3/8in-16 (10M) Post Length: 7/8in (22.22mm), accommodates multiple cable terminals Application: Make before break contact design allows switching between battery packs without interrupting power Applicable: Suitable for Marine Boat RV, large truck, modified car Package List: 1x Battery Disconnect Switch4 x Fixing Screws

• 1. Main Purpose: Switches isolated battery banks to all loads or combines battery banks to all loads, and includes AFD (Alternator Field Disconnect).
• 2. Product Features: Make before break contact design allows switching between battery banks without power interruption, which has ignition protection.
• 3. Easy Installation: Case design allows surface or rear panel mounting, with compact structure for easy and safe installation on gasoline powered boats.

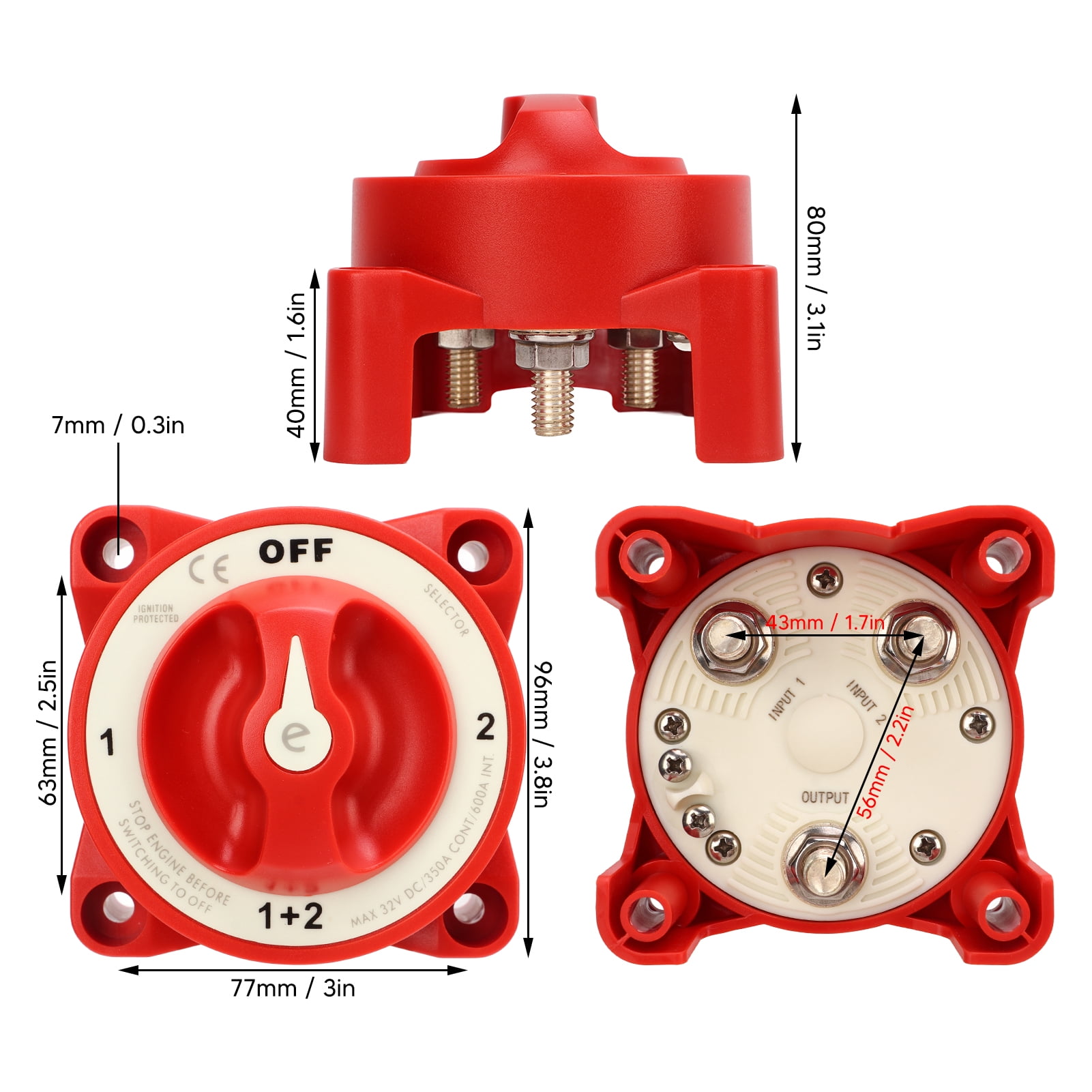

• 4. Standard Size: With 3/8in‑16 studs, which accepts 3/8in and M10 ring terminals, and 7/8in (22.22mm) stud length to accept multiple cable terminals.
• 5. Wide Application: The battery power off switch has good practicability and high reliability, suitable for marine boat RV, large trucks, modified cars, etc.
