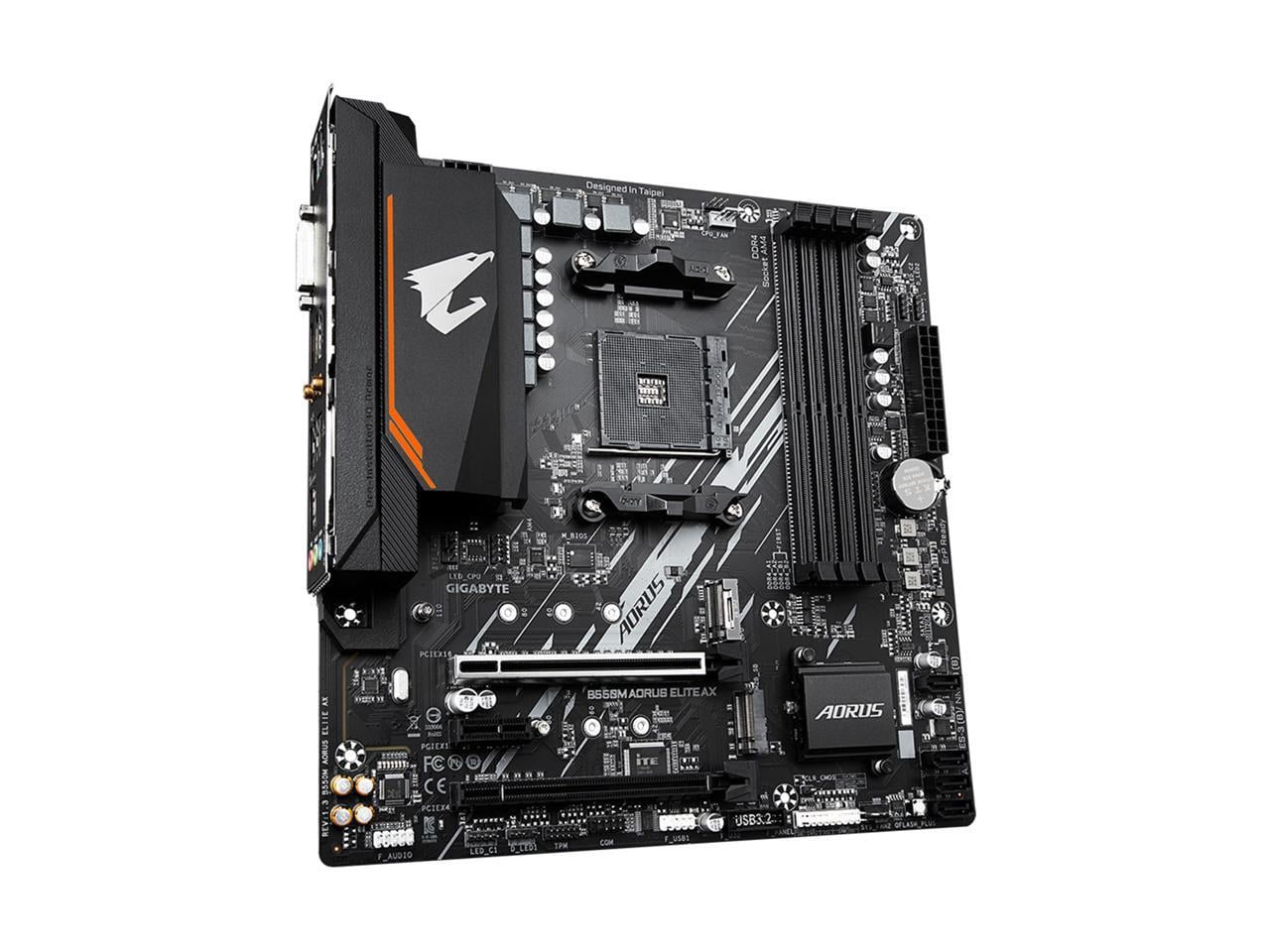

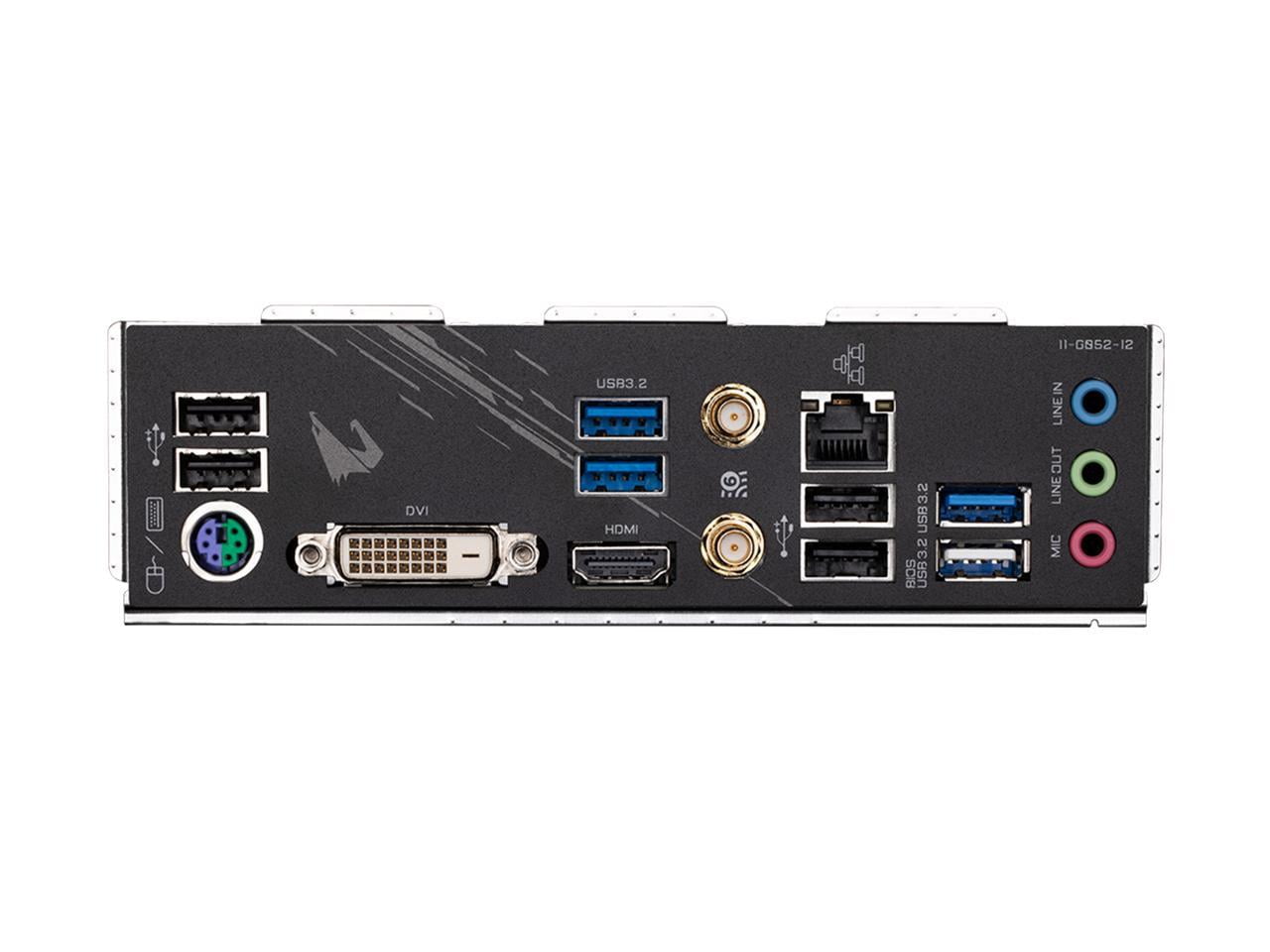

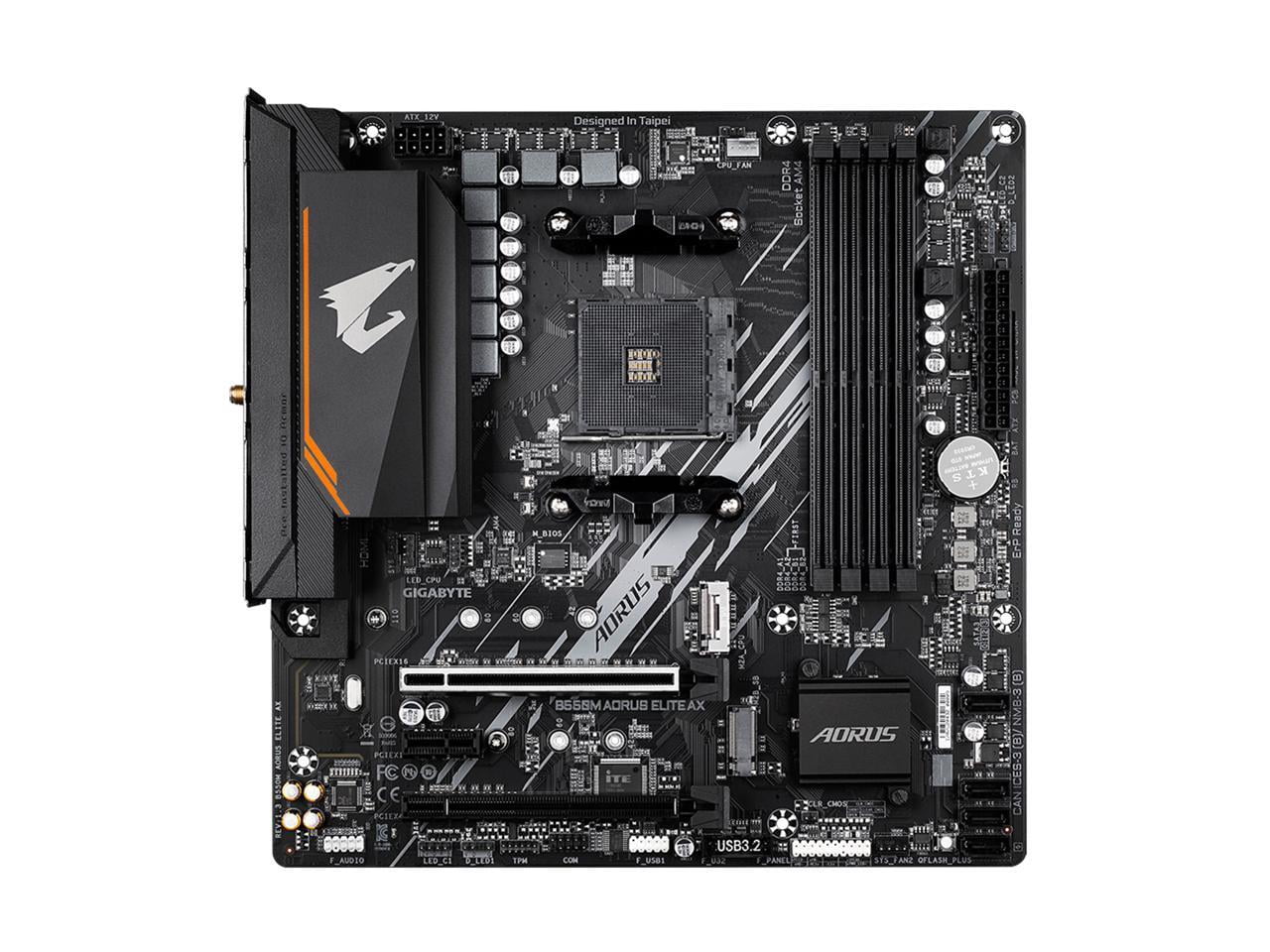

Aorus Ultra Durable Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Micro ATX (b550maoruseliteax)

<b><u>Processor &amp; Chipset</u><br></b><br><b>Chipset Manufacturer:</b> AMD<br><b>Chipset Model:</b> B550<br><b>Total Processor Supported:</b> 1<br><b>Processor Socket:</b> Socket AM4<br><b>Processor Supported:</b> Ryzen 5, Ryzen 3<br><br><b><u>Memory</u><br></b><br><b>Number of Memory Slots:</b> 4<br><b>Memory Form Factor:</b> DIMM, UDIMM<br><b>Maximum Memory Supported:</b> 128 GB<br><b>Memory Technology:</b> DDR4 SDRAM<br><b>Memory Speed Supported:</b> 4733 MHz, 4600 MHz, 4400 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3200 MHz, 2933 MHz, 2667 MHz, 2400 MHz, 2133 MHz<br><br><b><u>I/O Controller</u><br></b><br><b>Controller Type:</b> Serial ATA/600<br><b>RAID Supported:</b> Yes<br><b>RAID Levels:</b> 0, 1, 10<br><br><b><u>Video</u><br></b><br><b>Onboard Video:</b> CPU Dependent Video<br><br><b><u>Audio</u><br></b><br><b>Audio Channels:</b> 7.1<br><br><b><u>Network &amp; Communication</u><br></b><br><b>Bluetooth:</b> Yes<br><b>Bluetooth Standard:</b> Bluetooth 5.3<br><b>Gigabit Ethernet:</b> Yes<br><b>Wireless LAN:</b> Yes<br><b>Wireless LAN Standard:</b> IEEE 802.11 a/b/g/n/ac/ax<br><br><b><u>I/O Expansions</u><br></b><br><b>Total Number of Expansion Slots:</b> 2<br><b>PCI Express Standard:</b> PCI Express 3.0<br><b>Total Number of PCI Express Slots:</b> 2<br><b>Number of PCI Express x1 Slots:</b> 1<br><b>Number of PCI Express x16 Slots:</b> 1<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Total Number of USB Ports:</b> 8<br><b>Number of USB 2.0 Ports:</b> 4<br><b>Number of USB 3.2 Gen 1 Ports:</b> 4<br><b>HDMI:</b> Yes<br><b>HDMI Version:</b> 2.1<br><b>DVI:</b> Yes<br><b>Number of Network (RJ-45) Ports:</b> 1<br><br><b><u>Onboard Interfaces</u><br></b><br><b>Number of SATA Interfaces:</b> 4<br><b>Number of M.2 Interfaces:</b> 2<br><b>Total Number of Onboard USB Ports:</b> 4<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> Micro ATX<br><b>Width:</b> 9.6"<br><b>Depth:</b> 9.6"

• AMD AM4 Socket: Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
• DDR4 Compatible: Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• Sturdy Power Design: 5+3 Pure Digital VRM with Low RDS(on) MOSFETs
• Connectivity: PCIe 4.0 x16 Slot, Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors, Realtek GbE LAN chip
• Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 5, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
