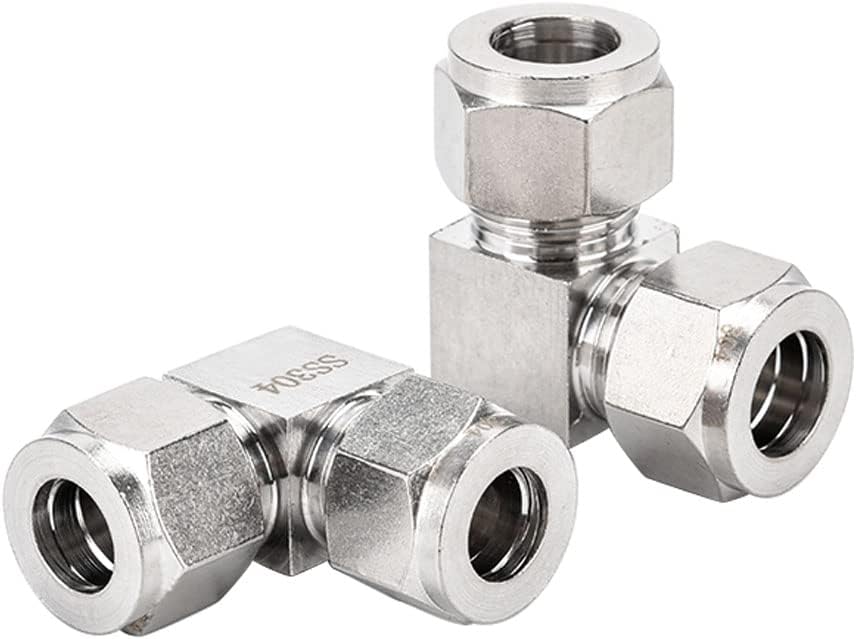

304 Stainless Steel Reducing Compression 90 Degree Elbow 1/4" x 1/8" OD 1pc

This fitting is made of 304 stainless steel for higher strength and great corrosion resistance. This fitting has hex nut construction for tighter, leak-free connections. It is compatible with stainless steel, copper, rigid and semi-rigid plastic tubing, but is not recommended for soft tubing. It is suitable for use in chemical, petroleum, power generation, laboratory, and medical device plants. This coupling is for a fixed connection between tubing and pipe made of stainless steel. Twin ferrule compression fitting connects to tubing on end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

• Reducer 90-degree elbow for connecting tubing of different size at an angle.
• One Size: Tube OD ¼"; Another Size: Tube OD 1/8"
• Twin ferrule compression fitting for a leak-resistant seal in high-pressure applications.
• 304 stainless steel for higher strength and greater corrosion resistance,good sealing and repeatability, convenient installation and maintenance, safe and reliable operation.
• Working Pressure: 2900psi / 20MPa;Temperature Range: -50-450℃ / -58℉ -842℉.
