18 Inch Aluminum Air Suspension Tank, 3 Gallon

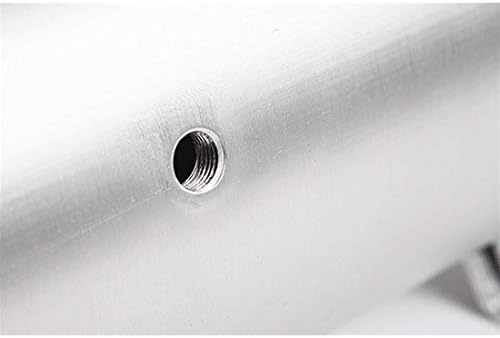

Seamless aluminum air tanks have revolutionized welded air tank construction. Speedway Motors has adapted a new style of technology to create a non-welded tank. The metal spinning process has allowed Specialty to manufacture the tanks from a single piece of extruded aluminum tube. Their technique of closing both ends of the tube using the base material creates a true seamless tank. The Flow Forming Technology used on the port holes reforms the base metal inward into the tank giving a superior surface area for threading. The standard mounting hardware gives the consumer a limitless range of mounting positions and angles to accommodate most mounting situations. 18" Length. 6.625" Diameter. (4) 3/8" NPT ports (Two on each end cap) (1) 1/4" NPT port - (Drain port at bottom of tank) Rated @ 200psi. Mounting brackets and hardware included. Actual volume 2.2 gallons. Aluminum construction. Natural finish.

• Aluminum construction for consistent performance and reliability
• 18" Length, 6.625" diameter, rated @ 200psi
• (4) 3/8" NPT ports (two on each end cap), (1) 1/4" NPT port - (drain port at bottom of tank)
• Industry labeled size 3 gallon, actual volume 2.2 gallons
• Mounting brackets and hardware included
